Products center

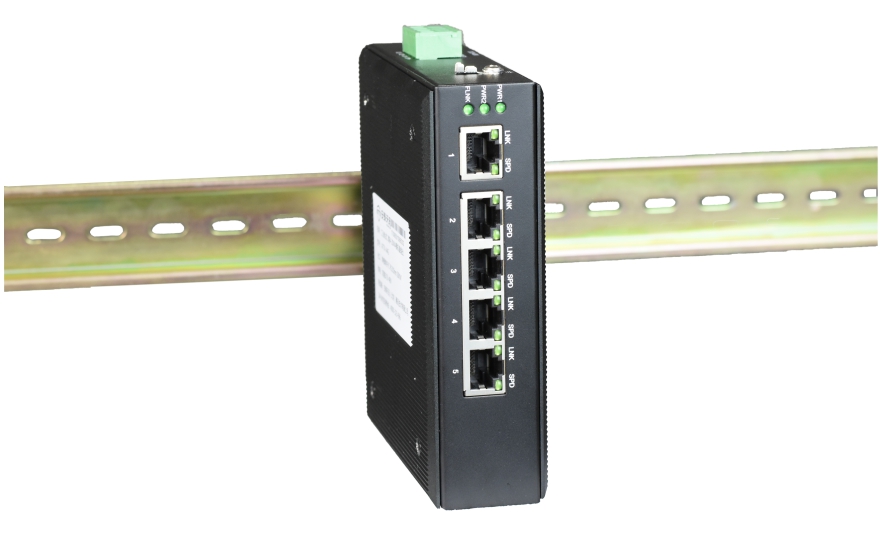

Industrial 5-port FE Switch

Type: FCJG-F5 Message

Description:This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail a

Product Description
    This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail and wall mounted two kinds of installation.
Functional Properties
◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
◆ The device provides 5*100M Ethernet electrical interface supports 10/100M adaptive full/half duplex mode MDI / MDI-X automatic detection;
◆ The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;
◆ Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;
◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 1916 bytes of Ethernet packets;
◆ Support a wide range of 9-55V AC and DC power input;
◆ Support internal isolation redundant dual power input;
◆ Power supply support overload protection anti-reverse protection;
◆ Meet the requirements of industrial four electromagnetic compatibility;
◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
◆ No fan efficient cooling reduce the repair time;
◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

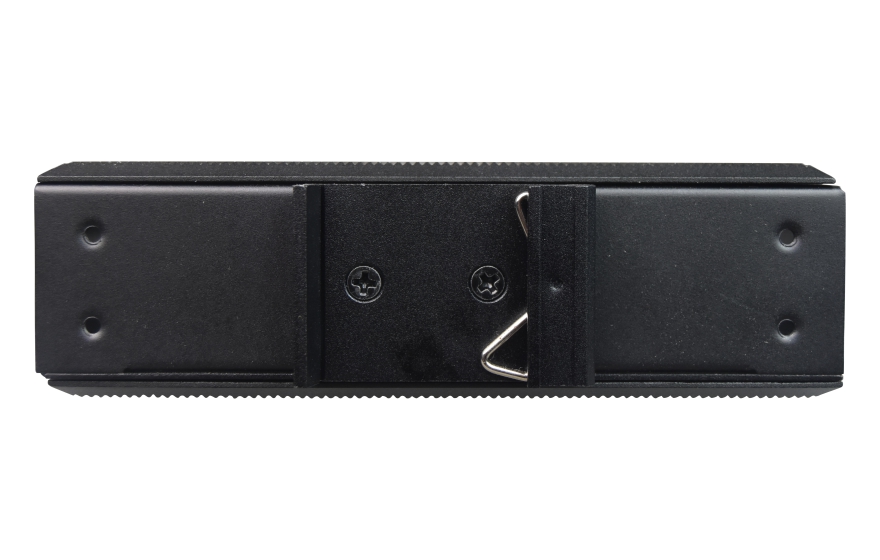

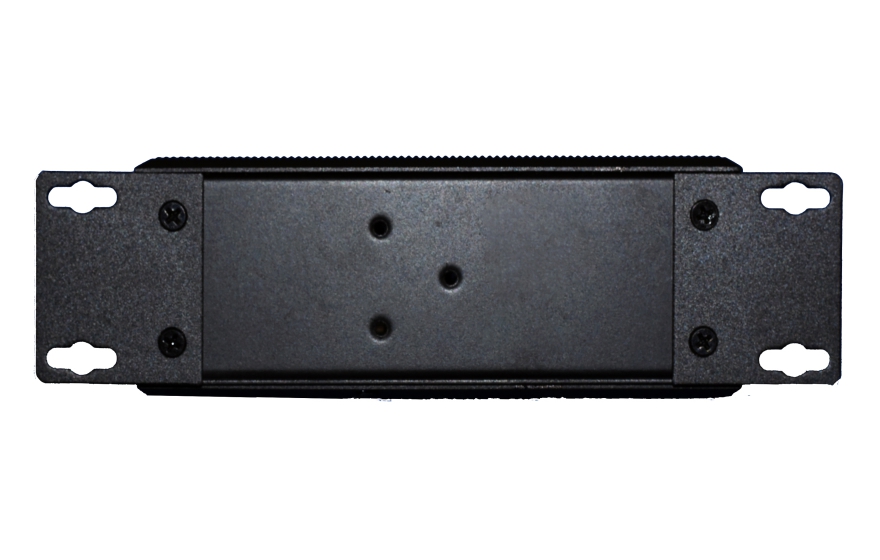

◆ Rail or wall mounted;
◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

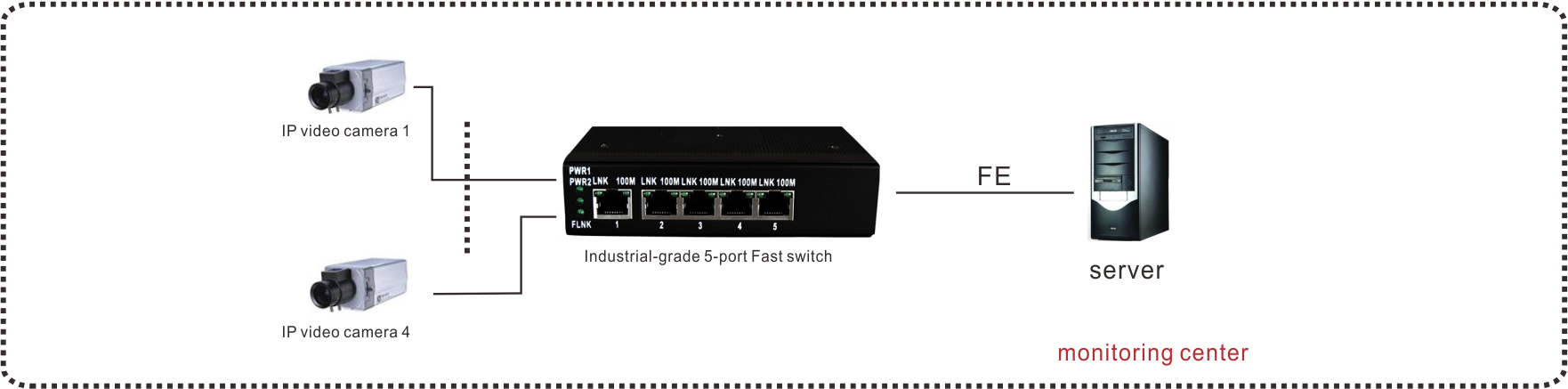

Application Scheme
DataSheet Download
?
